Agri-Hawk Drone 30

A powerful 30L agricultural drone built for precision spraying.

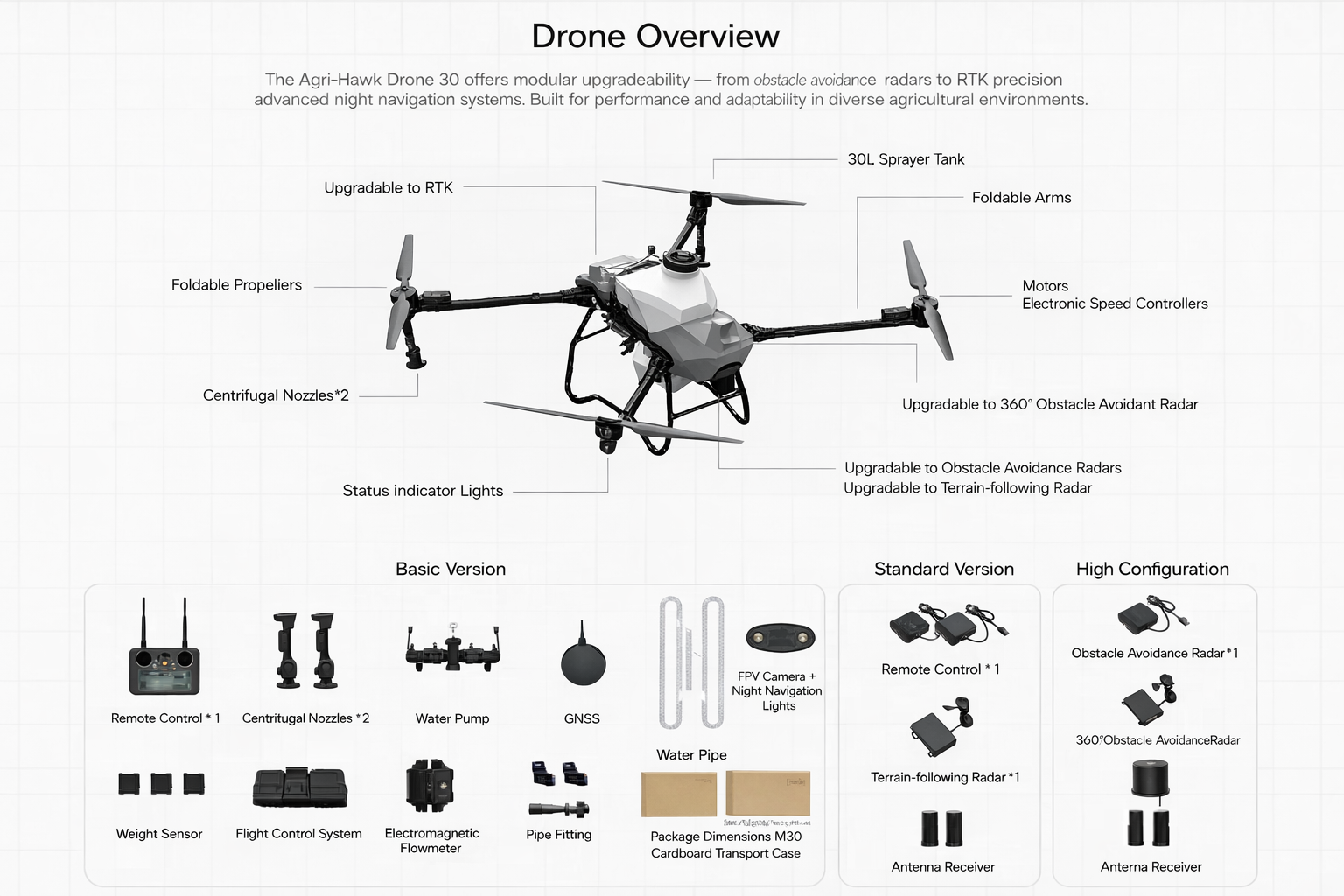

Agri-Hawk Drone 30 Specifications

Core Capabilities

Durable Casing

Dust and tamper-resistant carbon fiber frame.

Multi-Mode Connectivity

Wi-Fi, 4G, and Bluetooth connectivity options.

Encrypted Communication

Ensures secure data transmission over all networks.

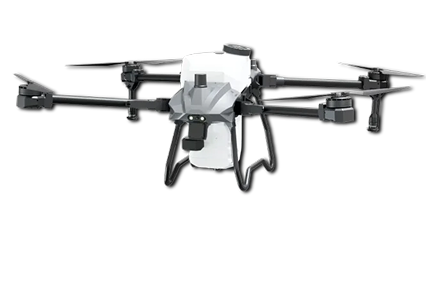

Agri-Hawk Drone 30 Core

Power Efficient

Operates on dual battery system for extended usage.

Custom Access Logic

Intelligent control with modular configuration options.

High-Precision Sensor

Supports wind-resistant flight and high-accuracy mapping.

Feature Spotlights

Experience reduced maintenance time, enhanced reliability, and precise navigation — all designed to simplify operations and maximize productivity.

Quick-Release Landing Gear

Quick-Release Landing Gear, Fast Maintenance

Quick-detach landing gear enables rapid maintenance and efficient operation during demanding agricultural work.

Dual Water Pumps

Dual Water Pumps Boost Flow and Efficiency

Dual water pumps provide higher flow for efficient spraying and transport operations, enhancing agricultural productivity.

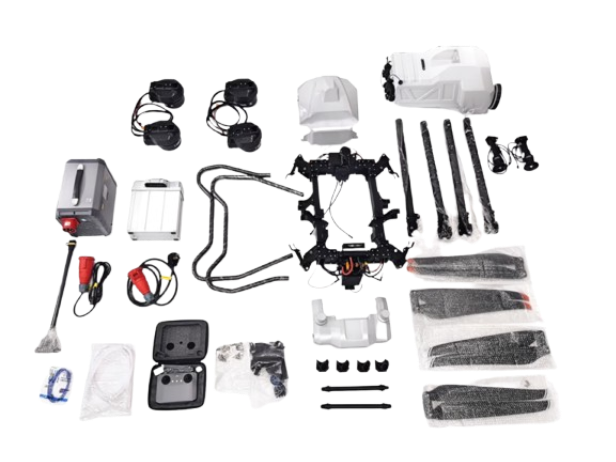

Drone Components & Assembly
Every Agri-Hawk Drone kit includes precision-engineered components for efficient assembly — including the main carbon fiber frame, motor arms, propellers, pump, control modules, cables, and the remote control unit. Designed for easy maintenance and modular upgrades, ensuring long-term reliability in demanding agricultural operations.
Drone Components
Dimensions & Physical Specifications

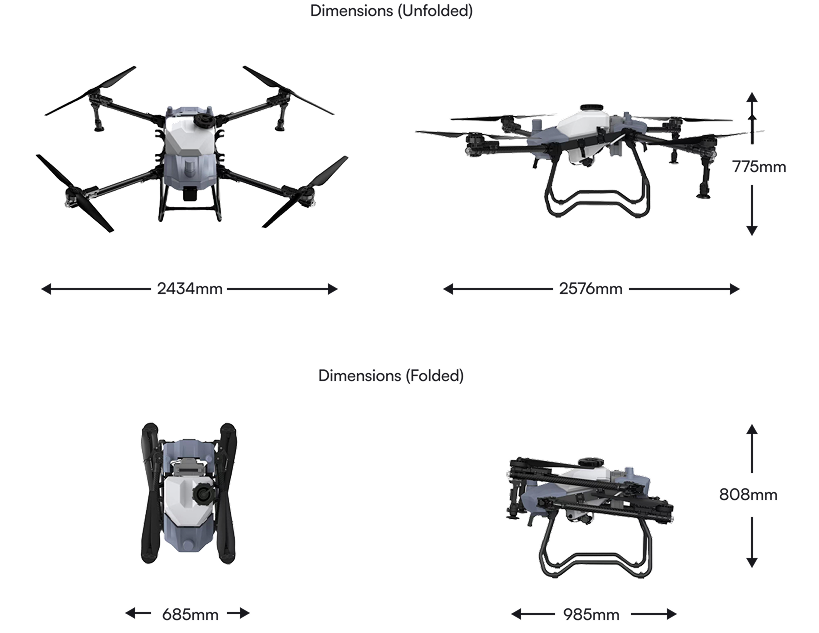

Drone Dimensions Unfolded and Folded
Detailed Technical Specifications
Aerial Platform
Dimensions (folded)985*685*808 mm
Dimensions (unfolded)2434*2576*775 mm
Weight (w/o battery)28 kg
Weight (with battery)39.1 kg
Waterproof GradeIP67
Flight Parameters
Max. Take-off Weight985*685*808 mm
Max. Flight Speed2434*2576*775 mm
Max. Flight Altitude28 kg
Hovering Duration28 mins(with no load)
Hovering Duration8 mins(with full load)
Spraying System
Liquid Tank & Pumps
Capacity30 L
Nozzle TypeCentrifugal Nozzles
Spray Width8~20 m
Max. System Flow Rate20 L / min
Spreading System
Capacity42 L
Granule Size0.5~10 mm
Camera
Resolution1920*1080 px
Night NavigationHigh Brightness Lights
Propulsion System
Motor Max Tension36 kg
Propeller Model4314
ESC Max Current145 A
Obstacle Avoidance System
Safe Distance≥ 2 m
Max Terrain Gradient45°
Upward Radar Angle360°
Remote Control
ModelH12 (Android OS)
Signal Range5 km
Battery Life6~20 H
Power System
Battery & Charger
Model14S 30000mAh
Weight11.1 kg
Charger Output100A / 7200W

See How Hawk Works in the Real World

Request a guided walkthrough of Hawk’s agricultural drone systems — designed around operators, workflows, and real execution conditions, not just hardware specifications.
